IBM Unveils Sub‑1 Nanometer Chip, Doubling Transistor Density

IBM’s sub-1 nanometer chip shatters density records

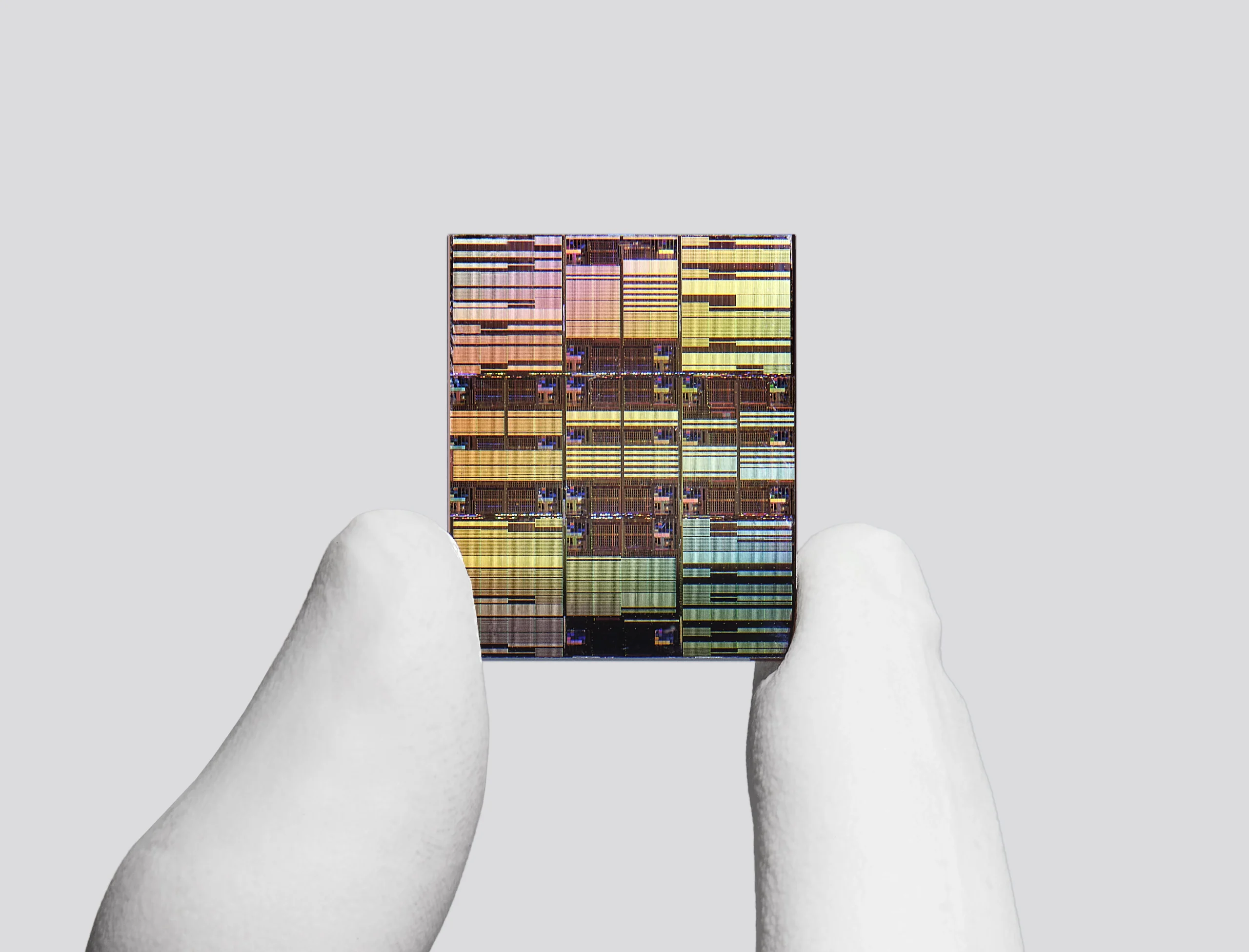

IBM announced a breakthrough sub-1 nanometer chip architecture that packs ↑ 100 billion transistors onto a die roughly the size of a human fingernail. The new “nanostack” design promises almost ↑ 2× the transistor density of IBM’s previous generation, translating into markedly higher compute throughput and lower power draw for AI workloads.

Why the sub‑1 nm claim matters

Physically fabricating features under one nanometer remains beyond current lithography limits, so IBM’s claim rests on a novel stacking and interconnect scheme that mimics the performance gains expected from sub‑nanometer dimensions. In practice, the architecture delivers the same efficiency leap without breaching known material constraints.

“It’s not just an incremental step, it’s a meaningful leap forward,” said Jay Gambetta, director of IBM Research and IBM Fellow, during a media briefing.

The chip targets AI data centers, where exponential model growth demands ever‑greater processing power. Analysts from Reuters note that such efficiency could curb the sector’s soaring electricity bills, a lingering concern since the pandemic accelerated cloud adoption.

While the commercial rollout remains months away, the announcement signals IBM’s intent to reclaim leadership in high‑performance computing.
